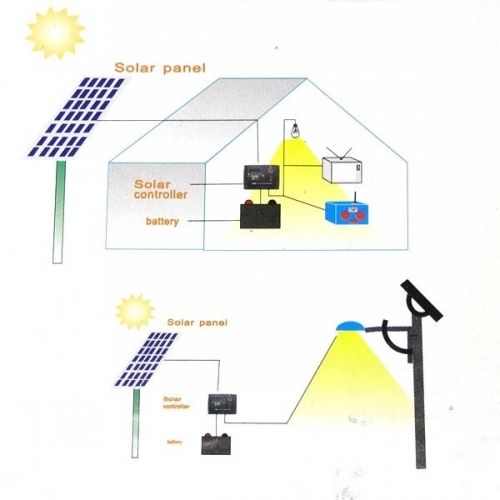

20A 12V/24V PWM Solar Street Light Panel Charge Controller Regulator Auto switch
We also have 10A and 30A, you can check the link:
10A 12V/24VSolar charge Controller
30A12V/24V Solar charge Controller
100% Brand New And High Quality
Overcharging protection.
Can be used for all panels.
Overdischarging protection.
Short and Open Circuit protection.
Full specification available if required.
Fail Safe and cannot be damaged by accidental wiring mistakes.
Advanced design with simple plug and play technology. No need for complicated adjustments.
Full LED status indication: State of Charge(SOC) Red-Flat Battery: Amber-Low charge: Green- good charge: Green Flashing- Full Charge.
ype SDRC10(I) Rated charge current 20A Rated load current20A . Work voltage □12v; □12/24V Auto Over load, short circuit protection 1.25 rated load current 60sec, 1.5 rated loads current 5sec, over load protection action. ≥3 Rated load current short circuit protection action. No load current ≤6mA Charging circuit voltage drop ≤0.26 V Load circuit voltage drop ≤0.15 V Over voltage protection 17V; ×2/24V Work temperature Industry stage：-35℃ to +55℃； Boost charge voltage 14.6V；×2/24V； (keep 10min) Direct charge voltage 14.4V; ×2/24V； (keep 10min) Float charge voltage 13.6V; ×2/24V； charge return voltage 13.2v;×2/24V； Temperature compensation -5mv/℃/cell (Boost charge, Direct charge, Float charge, charge return voltage); Lower voltage indicate 12.0V； ×2/24V； Over discharge voltage 11.1V（no load）- real-time modified voltage by the discharge rate； ×2/24V； Over discharge return voltage 12.6V; ×2/24V Control mode PWM charge mode; modified discharge voltage by the discharge rate Dimension: 13.8 x 9cx 2.8cm
Package:
1 x 20A Solar Panel Charge Controller Regulator 12V/24V
