New 200V 100A DC Digital Voltmeter Ammeter LED Amp Volt Meter +

100% Brand New And High Quality
Working voltage:4-30V DC
Working current:<10mA
Display: 0.28" Two color blue and red
Measuring range:DC 0-200V 0-100A (more than 10A need shunt )
Refresh rate: about 200mS / times
Measure accuracy: 1% (± 1 digit)
Operating temperature: -10 to 65° c
Working pressure: 80 to 106 kPa
size :48×29×26 mm
The module has reverse polarity protection, even if it will not damage the module reversed.
50A and 100A ammeter scale accurate to 0.1A, 10A ammeter less accurate to 0.01A, voltmeter accurate to 0.1V.
Instructions:
The ammeter power supply terminal and ground using common measuring terminal to design, that is, the power supply side of the ground and the testing ground is the same, so the test ammeter in series with the electrical terminal only after (ie, the device under test the anode and cathode power between the device under test)
Recommends using a separate header isolated power supply terminal
Before using shunt must first access the circuit and then draw digital ammeter head to prevent pressure damage to the meter.
Before using shunt must first access the circuit and then draw digital ammeter head to prevent pressure damage to the meter.

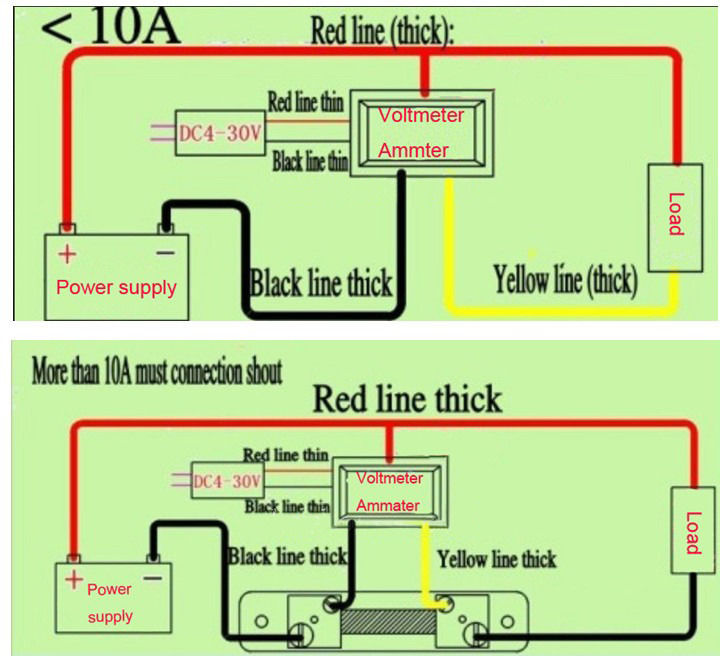

Lead Definition (5 lines)
Thin black line: negative power meter
The Thin Red Line: Header powered anode (thin red and thin black line between the voltage 4-30V, over shall be burnt)
Thick red line: measure the positive voltage input (this line and the thick black line is the voltage between the voltage meter display)
Thick yellow line: measure current flow leads.
Bold lines: measuring current flow leads (thick black line and the thin black line is the common ground is connected)

Package includes:
1 x 200V 100A DC Digital Voltmeter Ammeter

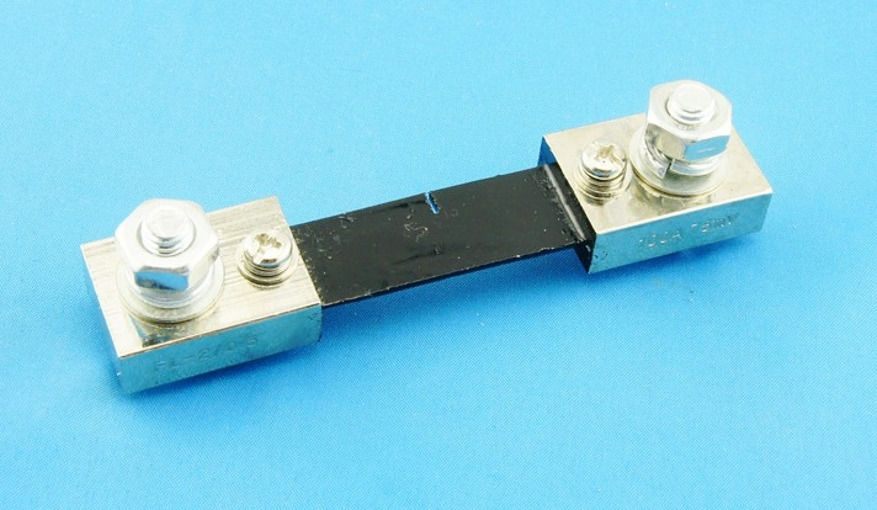

1 x Current Shunt
We can also wholesale if you need a large quantity of item please contact us
